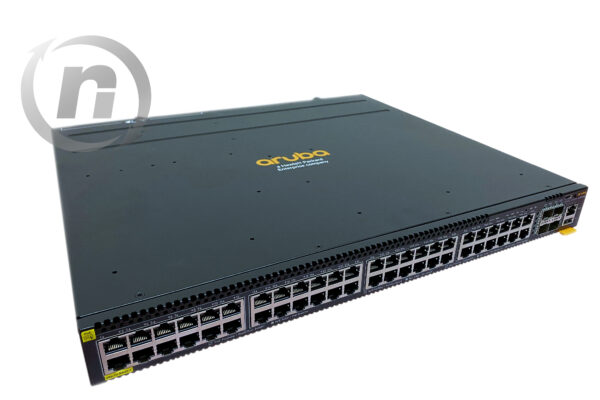

HPE / Aruba 6300M JL661A 48-port 1GbE Class-4 PoE 4x SFP56 Ethernet Switch
SKU
JL661A
Categories CX 6300 Series, HPE / Aruba Switches, Networking, Switches
Share This Product
Description
The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise network access, aggregation, core and data center top of rack (ToR) deployments. Created for game-changing operational efficiency with built-in security and resiliency, the 6300switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications.
For bulk pricing or additional availability, email [email protected] or call 612-877-6580 or 855-242-9761.
Hardware Specifications
- Brand: HPE / Aruba
- Model: JL661A
- 48x 10/100/1000BASE-T Class 4 PoE Ports supporting up to 30W per port
- 4x 1G/10G/25G SFP Ports
- Supports PoE Standards IEEE 802.3af, 802.3at
- 1x USB-C Console Port
- 1x OOBM
- 1x USB Type-A Host Port
- 1x Bluetooth dongle to be used with Aruba CX Mobile App
- 2x field-replaceable, hot-swappable power supply slots. Supported PSUs: JL086A, JL087A, JL670A
- Maximum PoE Power: 1440W
- Quad Core ARM Cortex A72 @ 1.8GHz CPU
- 8GB DDR4 / 32GB eMMC Memory and Flash
- 8MB Packet Buffer Memory
- 880Gbps Switching Capacity
- 660Mpps System Throughput Capacity
Additional Information
This Purchase Includes:
HPE / Aruba 6300M JL661A 48-port 1GbE Class-4 PoE 4x SFP56 Ethernet Switch
Special Notes: Lifetime warranty is offered through Revolving Networks only, not the manufacturer.
