Leveraging a non-blocking switching architecture, the Z9100-ON delivers line-rate L2 and L3 forwarding capacity to maximize network performance. The compact Z9100-ON design provides industry-leading density of either 32 ports of 100GbE, 64 ports of 50GbE, 32 ports of 40GbE, 128 ports of 25GbE or 128 ports 10GbE and two SFP+ ports of 10GbE/1GbE/100MbE to conserve rack space while enabling denser footprints and simplifying migration to 100Gbps in the data center core. Priority-based flow control (PFC), data center bridge exchange (DCBX) and enhanced transmission selection (ETS) make the Z9100-ON ideally suited for DCB environments. In addition, the Z9100-ON incorporates multiple architectural features that optimize data center network flexibility, efficiency and availability, including redundant, hot-swappable power supplies and fans.
For bulk pricing or additional availability, email [email protected] or call 612-877-6580 or 855-242-9761.

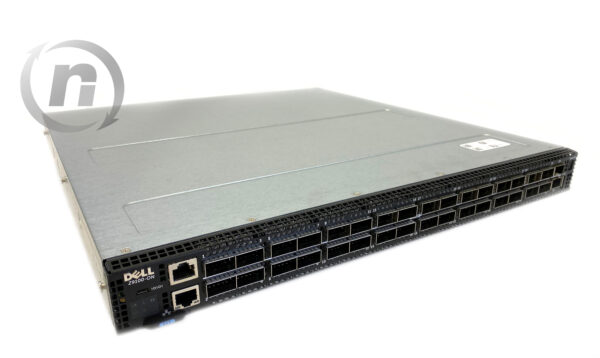

Dell EMC Z9100-ON High-Performance OS9 Multi-rate Open Networking Switch
- 1RU high-density 10/25/40/50/100GbE fixed switch with choice of up to 32 ports of 100GbE (QSFP28), 64 ports of 50GbE (QSFP+), 32 ports of 40GbE (QSFP+), 128 ports of 25GbE (SFP28) or 128+2 ports of 10GbE (using breakout cable).
- Up to 6.4Tbps of switching I/O bandwidth (full duplex) available and non-blocking switching fabric delivering line-rate performance under full load with sub usec latency.
- Scalable L2 and L3 Ethernet switching with QoS and a full complement of standards-based IPv4 and IPv6 features, including OSPF and BGP routing support.
- L2 multipath support via Virtual Link Trunking (VLT) and multiple VLT (mVLT) multi-chassis link aggregation technology.
- VRF-lite enables sharing of networking infrastructure and provides L3 traffic isolation across tenants.
- Open Automation Framework adding automated configuration and provisioning capabilities to simplify the management of network environments.
- Jumbo frame support for large data transfers.
- 128 link aggregation groups with up to sixteen members per group, using enhanced hashing.
- Redundant, hot-swappable power supplies and fans.
- I/O panel to power supply airflow or power supply to I/O panel airflow.
- Tool-less enterprise ReadyRails™ mounting kits reducing time and resources for switch rack installation.
- Power-efficient operation up to 45°C helping reduce cooling costs in temperature-constrained deployments.
- Converged network support for DCB, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV support.
- Z9100-ON supports Routable RoCE to enable convergence of compute and storage on Active Fabric.
This Purchase Includes:
Dell EMC Z9100-ON High-Performance OS9 Multi-rate Open Networking Switch
Special Notes: Revolving Networks does NOT guarantee Dell support eligibility or transfer of ownership.
Lifetime warranty is offered through Revolving Networks only; not the manufacturer.
