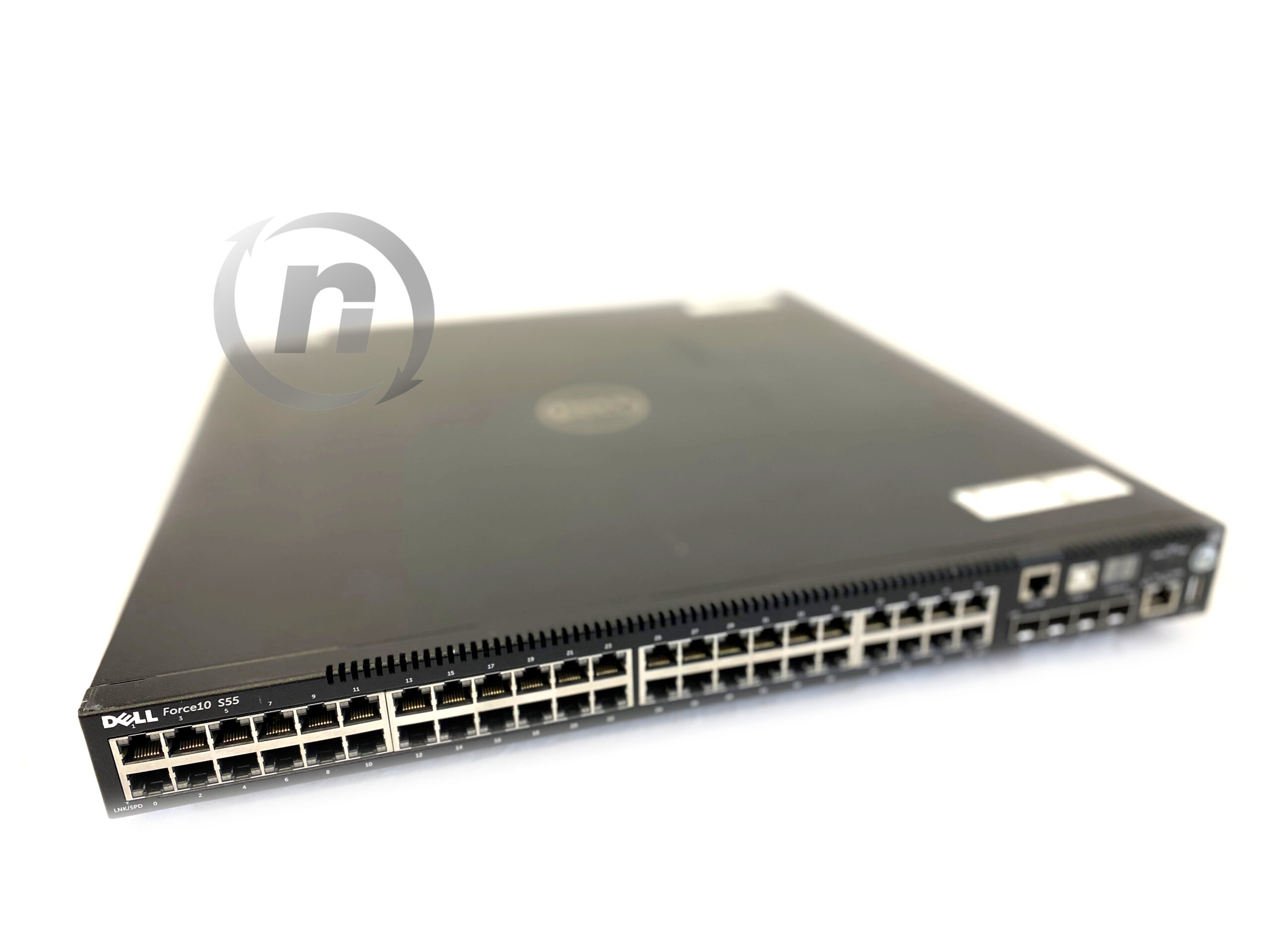

Dell S55T-AC-R Force10 Switch

Category:

Type:

Series:

SKU:

S55T-AC-R

Shipping:

FREE

Warranty:

LIFETIME

This purchase includes:

This Purchase Includes: Dell S55T-AC-R Force10 Switch Special Notes: Lifetime warranty is offered through Vitus only, not the manufacturer.

Special Notes:

Revolving Networks does NOT guarantee
Dell EMC support
eligibility or transfer of ownership.

Share This Product

Full Description
S55T-AC-R Force10 Networks - 44 Port 10/100/1000 Base-T With 4 SFP Ports And 2 Expansion Module Slots, 1 Ac Power Supply And 2 Fan Units With Airflow From Utility Panel To I/O Panel.
Hardware Specifications

Manufacturer: Dell
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 44 x 10/100/1000 + 4 x SFP
Performance: Switching capacity: 192 Gbps
Forwarding performance: 144 Mpps
Capacity: IPv4 routes: 16000, IPv6 routes: 8000, Virtual interfaces (VLANs): 4096
Jumbo Frame Support: 9252 bytes
Max Units In A Stack: 8
Authentication Method: RADIUS, TACACS+
MAC Address Table Size: 32K entries
Max Units In A Stack: 8
Authentication Method: RADIUS, TACACS+
Encryption Algorithm: MD5
Routing Protocol: BGP-4, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3
Jumbo Frame Support: 9252 bytes
MAC Address Table Size 32K entries
Subcategory network hubs and switches
Subtype Gigabit Ethernet
Form Factor: rack-mountable
Type: switch
Max Units In A Stack: 8
Advanced Switching: Layer 3
Features ARP support, BOOTP support, Per-VLAN Spanning Tree Plus (PVST+), Rapid Spanning Tree Protocol (RSTP) support, SNMP trap, Syslog support, Virtual Route Redundancy Protocol (VRRP) support, flow control, front to back airflow, layer 2 load balancing, DHCP relay, DiffServ support, IGMP snooping, IPv4 support, IPv6 support, LLDP support, Link Aggregation Control Protocol (LACP), Multiple Spanning Tree Protocol (MSTP) support
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac
Jumbo Frame Support: 9252 bytes
Ports Qty: 48
Manageable: Yes
Routing Protocol BGP, BGP-4, IGMP, IGMPv2, IGMPv3, OSPFv2, RIP-1, RIP-2, VRRP
Remote Management Protocol RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 3, TFTP, Telnet


The Dell PowerSwitch S Series represents a line of modular Ethernet switches primarily designed for data center environments. These switches are engineered to provide high-density port configurations, scalability, and advanced features necessary to support the demanding needs of modern data centers and enterprise networks.

Key features of the PowerSwitch S Series often include support for 10 Gigabit, 25 Gigabit, and 100 Gigabit Ethernet connectivity, modular design for flexibility and expansion, low-latency architecture for high-performance networking, and comprehensive management options. These switches aim to deliver exceptional performance, reliability, and network agility for data center access, aggregation, and core networking.

The PowerSwitch S Series is frequently chosen by organizations operating data centers and large-scale network deployments where high-performance networking and scalability are crucial. These switches are designed to provide the performance, flexibility, and management capabilities needed to ensure that data center networks can meet the challenges of today's IT environments effectively.
